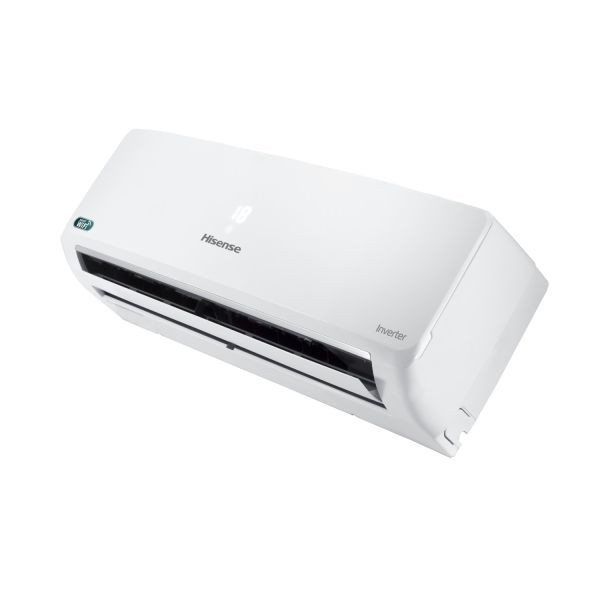

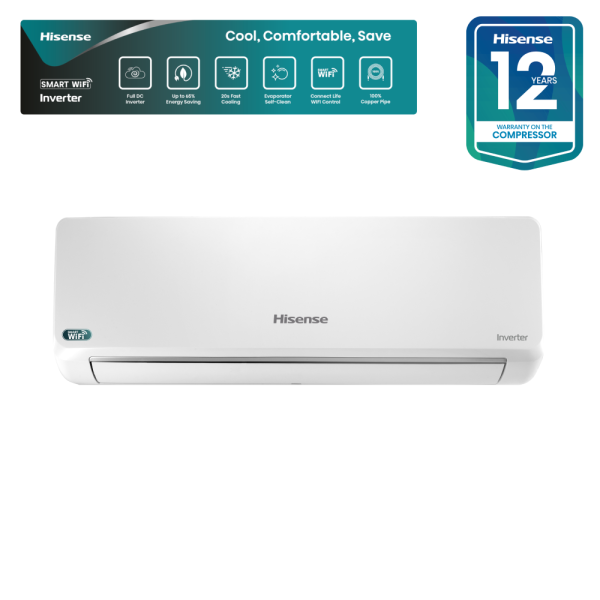

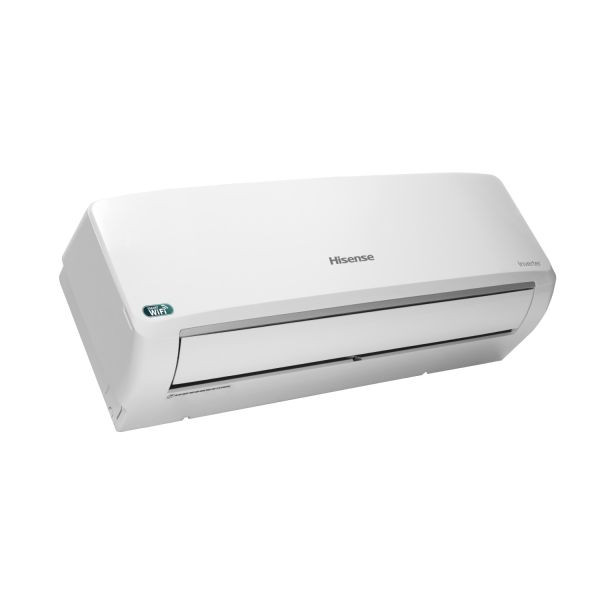

| Model No. |
AS18TZ4RMATD01AU |
| Basic Specifications |
Air Conditioner Type |
Inverter |
| Air Conditioner Function |
Cooling |
| Cooling Capacity (BTU/h) |
18000 |
| Cooling Capacity (W) |
5275 |
| Rated Voltage (V) |
220-240V, 50 Hz |
| Rated Input Power (W) |
1650 |
| Rated Current (A) |
7.3 |
| Climate Class |
T1 |
| EER (W/W) |
3.20 |
| Noise Level (dB) Indoor (Mid Fan Speed) |
40 |
| Noise Level (dB) Outdoor |
56 |
| Connecting Pipe Length (m) |
4 |
| Cooling Specifications |
Refrigerant |
R32 |
| Refrigerant Amount (kg) |
0.710 |
| Evaporator Type |
Copper Tube Evaporator |
| Condenser Type |
Copper Tube Condenser |
| Evaporator Fin Type |
Golden Hydrophilic Fin |
| |
|
| Compressor Type |
Rotary, Inverter |
| Operating Features |
Temperature Control Range |
16°C-30°C |
| Display Type (Indoor) |
LED |
| Display Dimmer |
YES |
| Vertical Auto Swing Louver |
YES |
| Horizontal Auto Swing Louver |
YES |
| Indoor Unit Filter |
Washable PP Filter |
| 24 Hour Timer |
YES |
| Sleep Operation |
YES |
| Super Function |
YES |
| Auto Restart |
YES |
| Self Cleaning |
NO |
| Refrigerant Leak Detection |
YES |
| Operation/Control |
Wirelesss Remote Controlled |
| 3 Speed and Auto Indoor Fan Control |
YES |
| Packing Information |
Indoor Unit Net Dimension (LxWxH) mm |
960 x 315 x 230 |
| Indoor Unit Packing Dimension (LxWxH) mm |
1022 x 380 x 302 |
| Outdoor Unit Net Dimension (LxWxH) mm |
780 x 260 x 540 |
| Outdoor Unit Packing Dimension (LxWxH) mm |
910 x 360 x 600 |
| Indoor unit Net Weight (kg) |
12 |
| Indoor unit Gross Weight (kg) |
14 |
| Outdoor unit Net Weight (kg) |
27 |
| Outdoor unit Gross Weight (kg) |
33 |
| Warranty Information |
Compressor |
12 Years |
| Main Board (PCB) |
4 Years |
| Spare Parts |
4 Years |
| Other |
2 Years Free Service |
