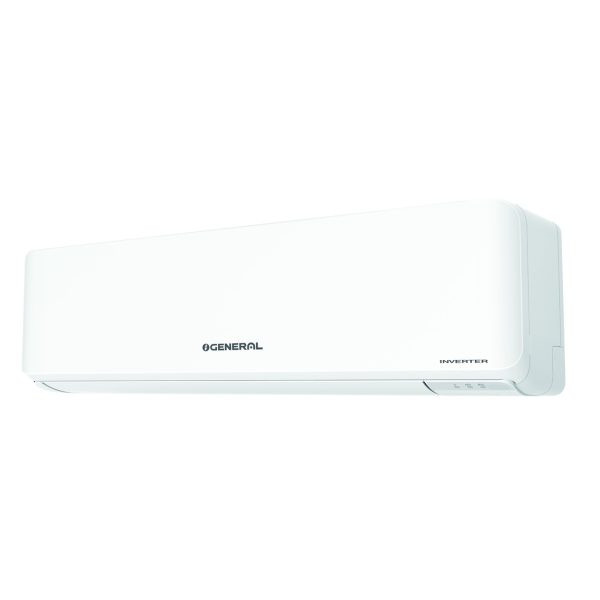

| Outdoor Unit Model | AOGG-24CPTA-V |
|---|---|
| POWER SOURCE (V/Ø/HZ) | 220 / 1 / 50 |
| Input Power-Cooling (W) | 2390 |
| CSPF-Cooling | 5.64 |
| Moisture Removal-Cooling (l/h) | 2.7 |
| Airflow Rate-Indoor-High(m3/h) | 1160 |
| Airflow Distance-Indoor (m) | 15 |
| Sound Pressure-Indoor-SP-Hi/Mid/Lo (dB(A)) | 50/46/41 |
| Sound Pressure-Indoor-SP-Qu (dB(A)) | 29 |
| Sound Pressure-Outdoor-SP (dB(A)) | 53 |
| Net Dimension (H×W×D)-Indoor-mm | 280 × 980 × 240 |
| Net Weight-Indoor-kg | 12.5 |
| Net Dimension (H×W×D)-Outdoor-mm | 632 × 799 × 290 |
| Net Weight-Outdoor-kg | 36 |
| Piping Connection (Small / Large) (mm) | 6.35/12.7 |
| Standard Pipe Length (m) | 7.5 |
| Add charge volume (g/m) | 20 |
| Operation Range-Indoor (˚C) | 18 – 32 |
| Operation Range-Outdoor (˚C) | 18 – 52 |
| Refrigerant Charge (Type) (kg) | 1.02(R32) |
| Max. Pipe Length (Pre-charge) (m) | 25 (15) |
| Max. Height Difference (m) | 20 |
| COOLING INPUT POWER (KW) | 7.04 |
AC installation Charge:
AC Installation with Materials (Iron Angle, 10 RFT Copper-tube, Insulation, Electric-wire & Rapping) Tk. 11,000
Wall type frame or, floor type frame (any One).
Free delivery:
Within DMP areas only.
Warranty:
Compressor: 02 years
Spare-parts: 02 years
Service: 03 years
Note:
