| Air Conditioner Type | Non-Inverter |
| Function | Cooling |
| Cooling Capacity | 36000 BTU/hr) |
| Compressor | Rotary |
| Refrigerant | R410 |
Note: Free Delivery & Installation(up to 10 feet copper pipe)
DESIGN AND SPECIFICATION ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE FOR PRODUCT IMPROVEMENT
বাংলাদেশের যে কোনো জেলা ৭২ ঘন্টার মধ্যে ডেলিভারি এবং ইনস্টলেশন প্রদান করা হয়,
Energy Saving: Upto 65% Energy Saving
Warranty for Residential Usage
Compressor Warranty: 5 Years
Spare Parts Support: 3 Year
Service Warranty: 3 Year
Warranty for Residential Usage
Compressor Warranty: 5 Years
Spare Parts Support: 3 Year
Service Warranty: 3 Year
Warranty for Commercial Usage
Compressor Warranty: 3 Years
Spare Parts Support: 2 Year
Service Warranty: 2 Year
Terms & Conditions
This warranty does not cover the following cases –
Authority reserves the right to change, extend, correct, stop, or cancel the warranty period without any prior notice.
| Indoor Model | Unit | MHC-36CRNEUC | |
| Outdoor Model | MHC-36CRNEUC | ||

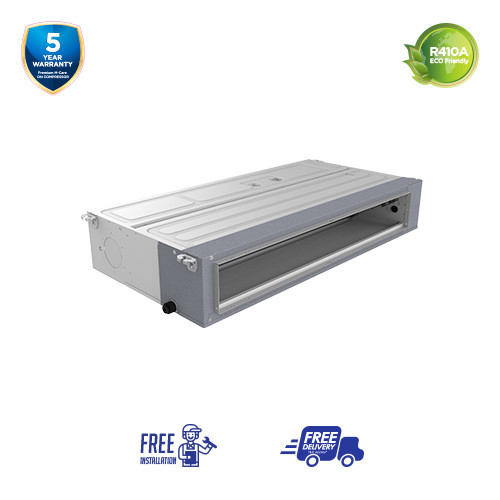

| Type (wall type or others) | Duct type | ||
| Type (On-Off/Inverter) | On-Off | ||
| Type (Cooling only/Heating-Cooling) | Cooling only | ||
| Power Supply | V-Ph-Hz | 380-410V, 3Ph, 50Hz | |
| Gas Type | R410 | ||
| Gas Amount(Kg) | Kg | 2.4 | |
|
Cooling |
Capacity (Btu/H) | (Btu/H) | 36000 |
| Standard Current (A) | A | 8.2 | |
| Standard Input (W) | W | 4000 | |
| Rated Current (Max Current) | A | 11.7 | |
| Rated Input (Max Input) | W | 5350 | |
| EER | W/W | 3.1 | |
| EER | (BTU/Hr)/W | 9.00 | |
| SEER | W/W | N/A | |
| Star Rating | Star | 3 | |
| Heating | Capacity (Btu/H) | (Btu/H) | N/A |
| Standard Current (A) | A | N/A | |
| Standard Input (W) | W | N/A | |
| Rated Current (Max Current) | A | N/A | |
| Rated Input (Max Input) | W | N/A | |
| EER | W/W | N/A | |
| EER | (BTU/Hr)/W | N/A | |
| SEER | W/W | N/A | |
| Star Rating | Star | N/A | |
| Controller type | Remote/wire | Remote+Wire | |
| Indoor Net Weight (KG) | Kg | 39.5 | |
| Indoor Gross Weight (KG) | Kg | 46.5 | |
| Indoor Body Size (mm) | mm | 1400×700×245 | |
| Indoor Packing Size (mm) | mm | 1630×830×300 | |
| Air Suction Mouth (mm) | 1278×205 | ||
| Air Discharge Mouth (mm) | 1213×177 | ||

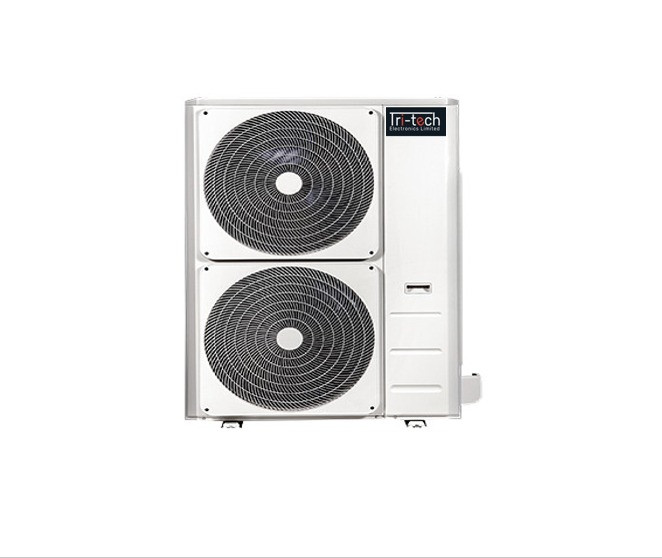

| Outdoor Net Weight (KG) | Kg | 68.2 | |
| Outdoor Gross Weight (KG) | Kg | 78.7 | |
| Outdoor Body Size (mm) | mm | 980X410X1210 | |
| Outdoor Packing Size (mm) | mm | 1032X470X1280 | |
| Compressor | Type | Rotary | |
| Compressor | Brand | LAMDA | |
| Suction pressure (Mpa) | Mpa | 4.2 | |
| Discharge Pressure (Mpa) | Mpa | 1.5 | |
| Operation temperature | 0C | 16-32 | |
| Pipe Size (Liquie side, Gas side) | Inch | 3/8, 5/8 | |
| Drain Pipe size | Inch (mm) | OD25.4 | |
| Indoor Air flow (Hi/Mi/Lo) | m3/h | 2200/1900/1500 | |
| IDU Noise level ,dB (Hi/Mi/Lo) | dB | 57/54/52/49 | |
| ODU Noise level ,dB (Hi/Mi/Lo) | dB | 59.5 | |
| Remarks: The above design and specifications are subject to change without prior notice for product improvement. | |||
