| Air Conditioner Type | Non-Inverter |
| Function | Cooling |
| Cooling Capacity | 24000 BTU/hr) |
| Compressor | Rotary |
| Refrigerant | R410 |
বাংলাদেশের যে কোনো জেলা ৭২ ঘন্টার মধ্যে ডেলিভারি এবং ইনস্টলেশন প্রদান করা হয়,
Energy Saving: Upto 65% Energy Saving
Warranty for Residential Usage
Compressor Warranty: 5 Years
Spare Parts Support: 3 Year
Service Warranty: 3 Year
Warranty for Residential Usage
Compressor Warranty: 5 Years
Spare Parts Support: 3 Year
Service Warranty: 3 Year
Warranty for Commercial Usage
Compressor Warranty: 3 Years
Spare Parts Support: 2 Year
Service Warranty: 2 Year
Terms & Conditions
This warranty does not cover the following cases –
Authority reserves the right to change, extend, correct, stop, or cancel the warranty period without any prior notice.

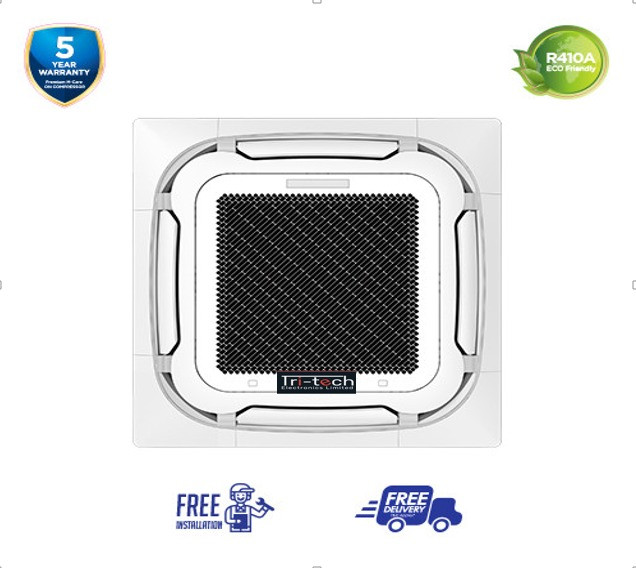

| Indoor Model | Unit | MCA-24CRNEWA | |
| Outdoor Model | MCA-24CRNEWA | ||
| Type (wall type or others) | Cassette type | ||
| Type (On-Off/Inverter) | On-Off | ||
| Type (Cooling only/Heating-Cooling) | Cooling only | ||
| Power Supply | V-Ph-Hz | 220-240V, 1Ph, 50Hz | |
| Gas Type | R410 | ||
| Gas Amount(Kg) | Kg | 1.2 | |
| Cooling | Capacity (Btu/H) | (Btu/H) | 24000 |
| Standard Current (A) | A | 12.7 | |
| Standard Input (W) | W | 2550 | |
| Rated Current (Max Current) | A | 15.1 | |
| Rated Input (Max Input) | W | 3470 | |
| EER | W/W | 3.16 | |
| EER | (BTU/Hr)/W | 9.41 | |
| SEER | W/W | N/A | |
| Star Rating | Star | 3 | |
| Heating | Capacity (Btu/H) | (Btu/H) | N/A |
| Standard Current (A) | A | N/A | |
| Standard Input (W) | W | N/A | |
| Rated Current (Max Current) | A | N/A | |
| Rated Input (Max Input) | W | N/A | |
| EER | W/W | N/A | |
| EER | (BTU/Hr)/W | N/A | |
| SEER | W/W | N/A | |
| Star Rating | Star | N/A | |
| Controller type | Remote/wire | Remote | |
| Indoor Net Weight (KG) | Kg | 25 | |
| Indoor Gross Weight (KG) | Kg | 28.5 | |
| Indoor Body Size (mm) | mm | 840x245x840 | |
| Indoor Packing Size (mm) | mm | 935x305x935 | |
| Front Panel Body Dimension (WXDXH) | mm | 950x45x950 | |
| Front Panel Packing Dimension(WXDXH) | mm | 1055×90×1055 | |
| Outdoor Net Weight (KG) | Kg | 51.5 | |
| Outdoor Gross Weight (KG) | Kg | 57.3 | |
| Outdoor Body Size (mm) | mm | 920X360X710 | |
| Outdoor Packing Size (mm) | mm | 985X435X760 | |
| Compressor | Type | Rotary | |
| Compressor | Brand | GMCC/LAMDA | |
| Suction pressure (Mpa) | Mpa | 4.2 | |
| Discharge Pressure (Mpa) | Mpa | 1.5 | |
| Operation temperature | 0C | 16-31 | |
| Pipe Size (Liquie side, Gas side) | Inch | 3/8, 5/8 | |
| Drain Pipe size | Inch (mm) | OD32 | |
| Indoor Air flow(Hi/Mi/Lo) | m3/h | 1600/1500/1400 | |
| IDU Noise level ,dB (Hi/Mi/Lo) | dB | 50/48/46 | |
| ODU Noise level ,dB (Hi/Mi/Lo) | dB | 59 | |
| Remarks: The above design and specifications are subject to change without prior notice for product improvement. | |||
